Crystal Structure of the Monoprotonated Tripodal Ligand Tris(2,2’- bipyrid-6-yl) Methanol
Cuhananthan W. Sathiyajith*, James C. Knight, Benson M. Kariuki, Peter G. Edwards, Angelo J. Amoroso*
School of Chemistry, Cardiff University, Main Building, Park Place, Cardiff, CF10 3AT, UK
The tripodal bipyridine-based ligand tris(2,2’-bipyrid-6-yl) methanol (L 1 ) was shown in our previous work
to have a strong steric preference for trigonal prismatic co - ordination environments with a series of transition metals.
We now report the crystal structure of the ligand framework, isolated in its monoprotonated form with a perchlorate
counterion. The structure was solved in a monoclinic space group C2/c with cell parameters, a = 21.5885(3), b =
11.7485(3), c = 24.6939(6) Å, α = 90°, β = 110.790(1) °, γ = 90°, volume = 5855.4(2) Å3
, Z = 8. The 1H NMR of the protonated ligand is similar to the parent ligand and showed the compound retained its 3-fold symmetry and all bipyridine
groups were equivalent.

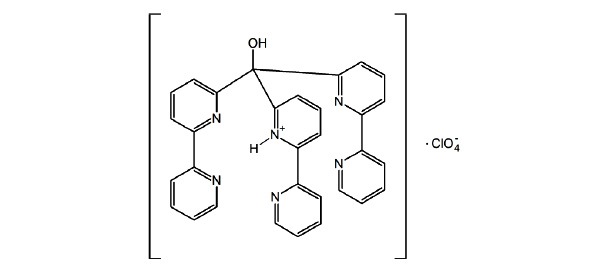

We report the crystal structure of the protonated form a tripodal bipyridine-based ligand framework with a strong
steric preference for trigonal prismatic co-ordination environments.
